• Rear axle, 3.42 ratio
• Pickup box
• GVWR, 7200 lbs. (3266 kg) (Requires 4WD models.)
• Air cleaner, high-capacity
• Hill Descent Control
• Differential, heavy-duty locking rear
• Transfer case, active, 2-speed electronic Autotrac with rotary controls, includes neutral position for dinghy towing (Included with 4WD models only.)
• Suspension, MagneRide Magnetic Ride Control with MagneRide brand shock absorbers
• Four wheel drive
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Frame, fully-boxed, hydroformed front section
• Underbody Shield, frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case (Standard on 4WD models only.)
• Recovery hooks, front, frame-mounted, black
• Cargo tie downs (4), movable upper
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Capless Fuel Fill
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) ultra bright machined aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Wheelhouse liners, rear
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color lower
• Bumper, rear body-color with corner steps
• CornerStep, rear bumper
• Assist steps, chromed tubular, 6" rectangular (factory installed) (May delete (BVQ) and add (BRS) power assist step or LPO assist steps (VXJ) by selecting (R8M) Alternate Assist Step Desired.)
• Moldings, bodyside, chrome
• Grille, Denali Chrome
• Active aero shutters, front
• Headlamps, high-performance LED headlamps with GMC signature LED lighting
• Headlight, IntelliBeam, automatic high beam on/off
• Fog lamps, thin profile LED
• Taillamps, LED with signature
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Window, power, rear sliding with rear defogger
• Glass, deep-tinted
• LED Lighting, cargo box with switch on center switch bank
• Tailgate and bed rail protection caps, top
• Remote Locking Tailgate (Included and only available with (AQQ) Remote Keyless Entry.)
• Tailgate, EZ-Lift and Lower
• Door handles, chrome
• Bed Liner, Spray-on Pickup box bed liner consisting of high pressure, chemically bonded, sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. Includes embossed Denali logo on front bed wall. The textured, non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gage hole plugs and lower tie down loops. (Not available with (VZX) bed liner, LPO.)

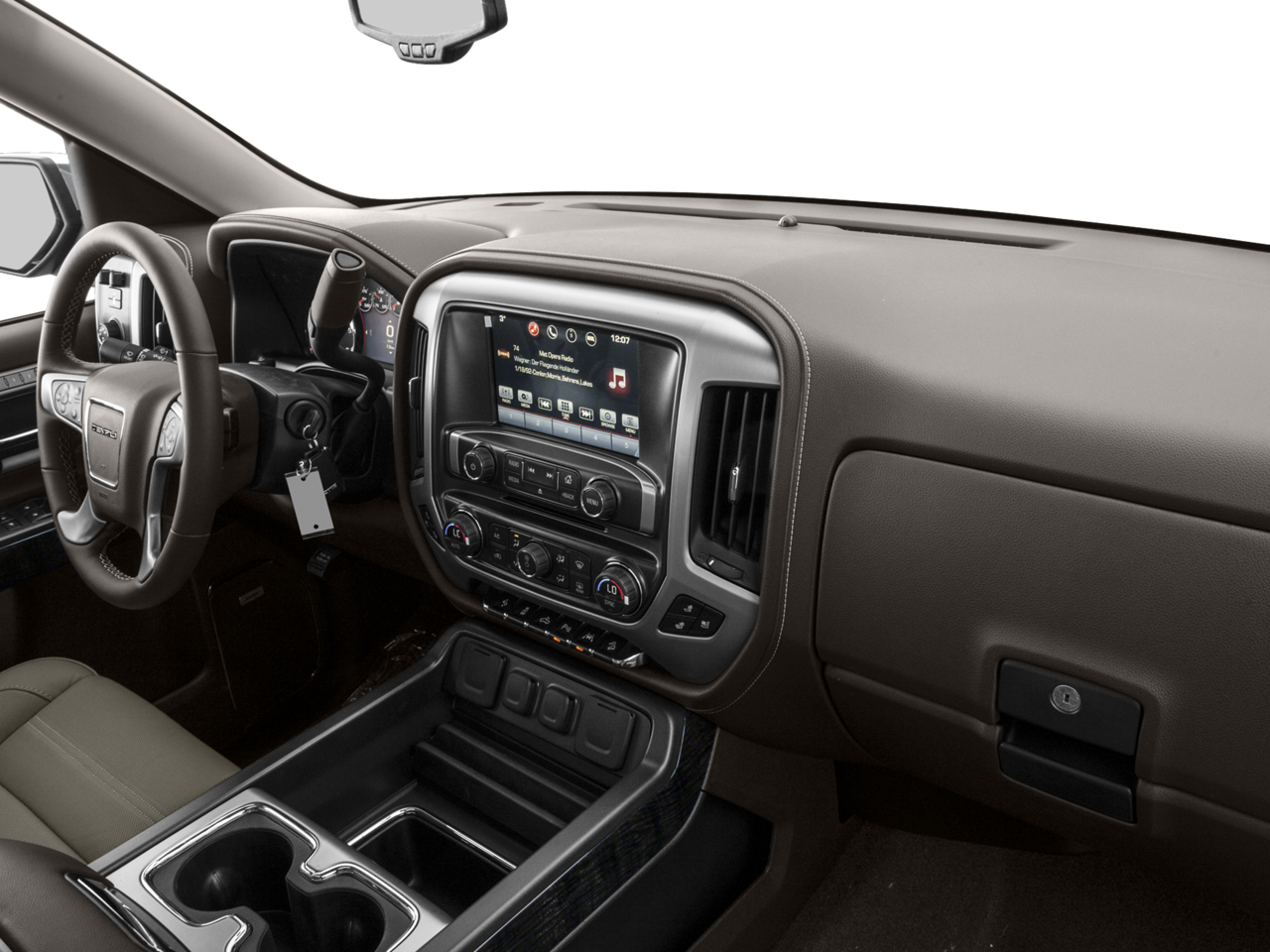

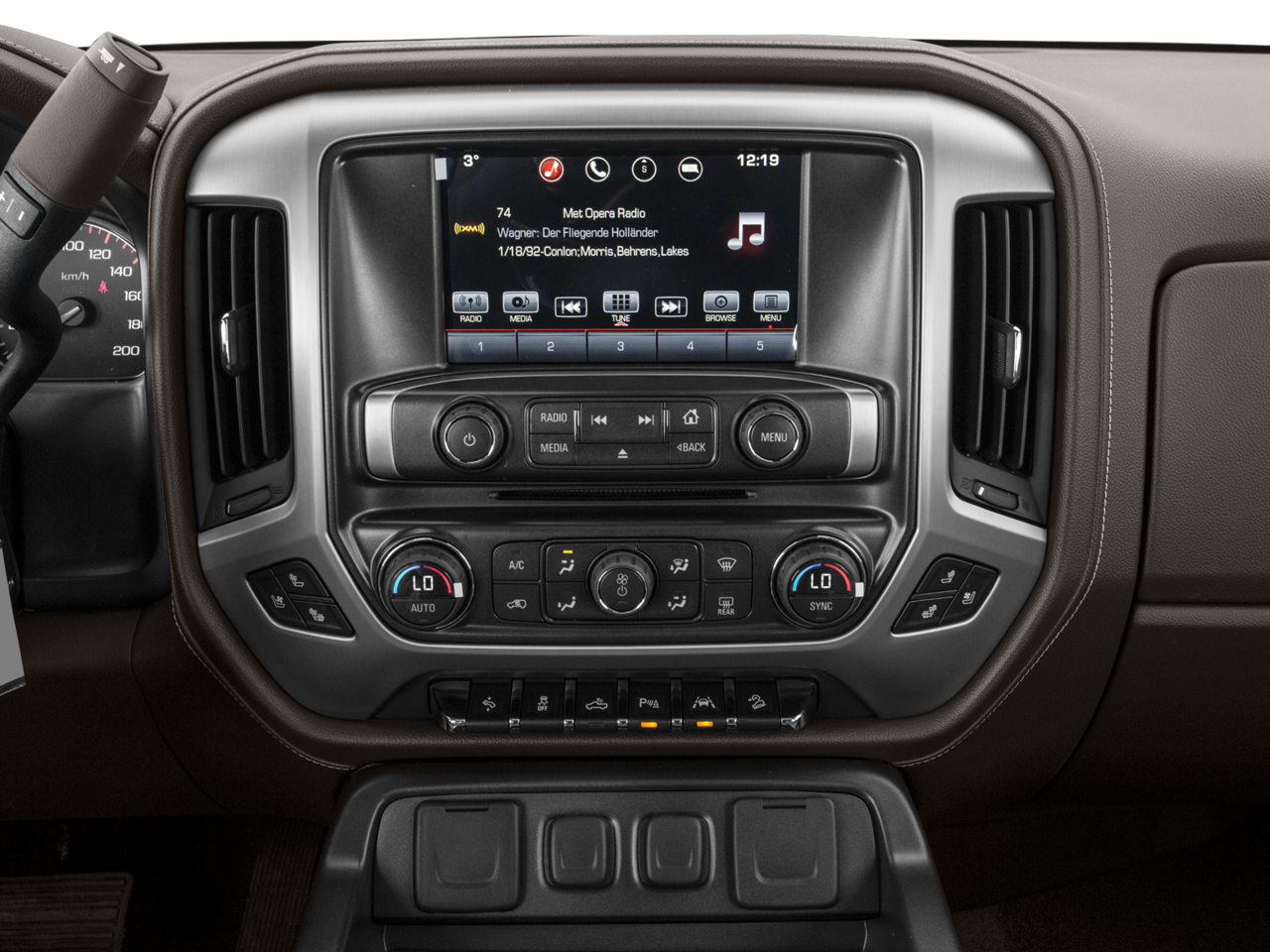

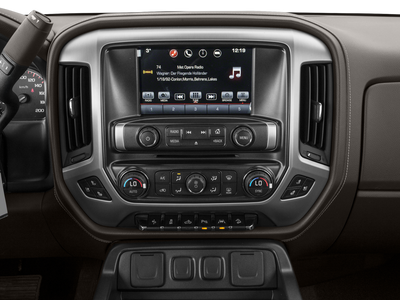

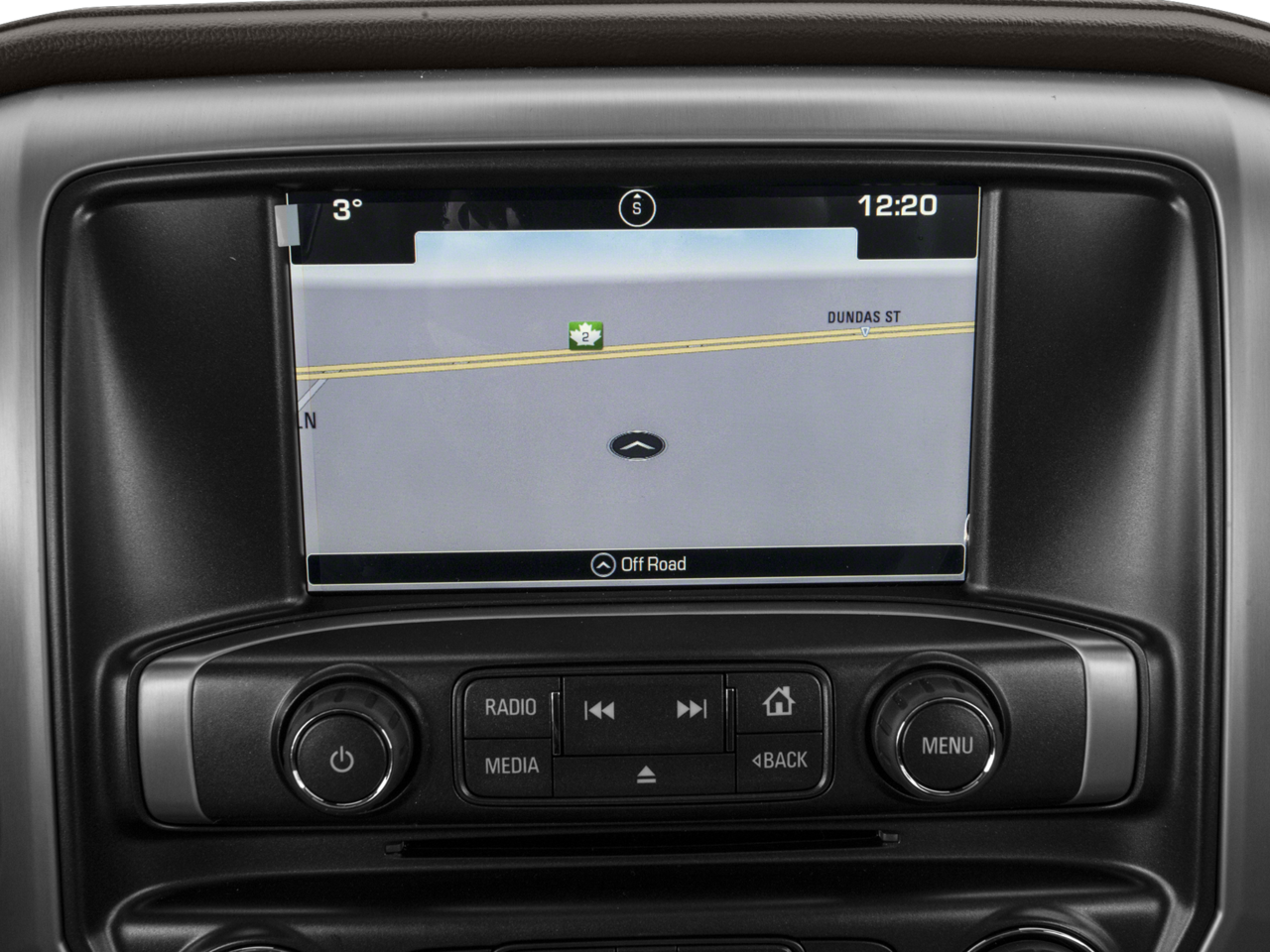

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, advanced phone integration featuring Android Auto and Apple CarPlay, Pandora Internet radio and voice-activated technology for radio and phon
• Radio, HD
• SiriusXM Satellite Radio is standard on nearly all 2017 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats)
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Steering wheel audio controls
• Wireless Charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses.)

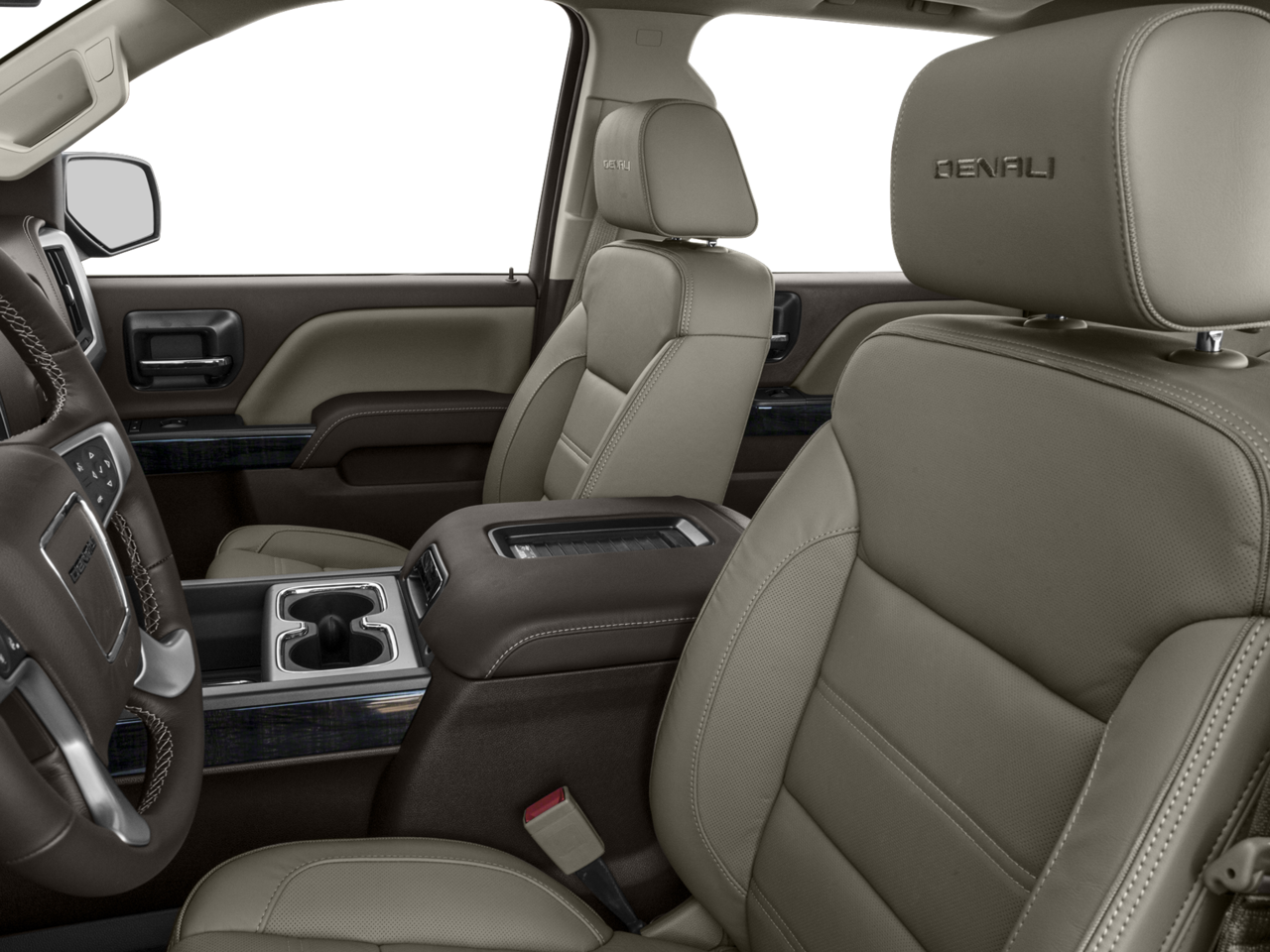

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 12-way power driver and front passenger seat adjusters, including 4-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets and (K4C) wireless charging
• OnStar 4G LTE and built-in Wi-Fi hotspot connects to the Internet at 4G LTE speeds; includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)
• Seating, heated and ventilated perforated leather-appointed front bucket

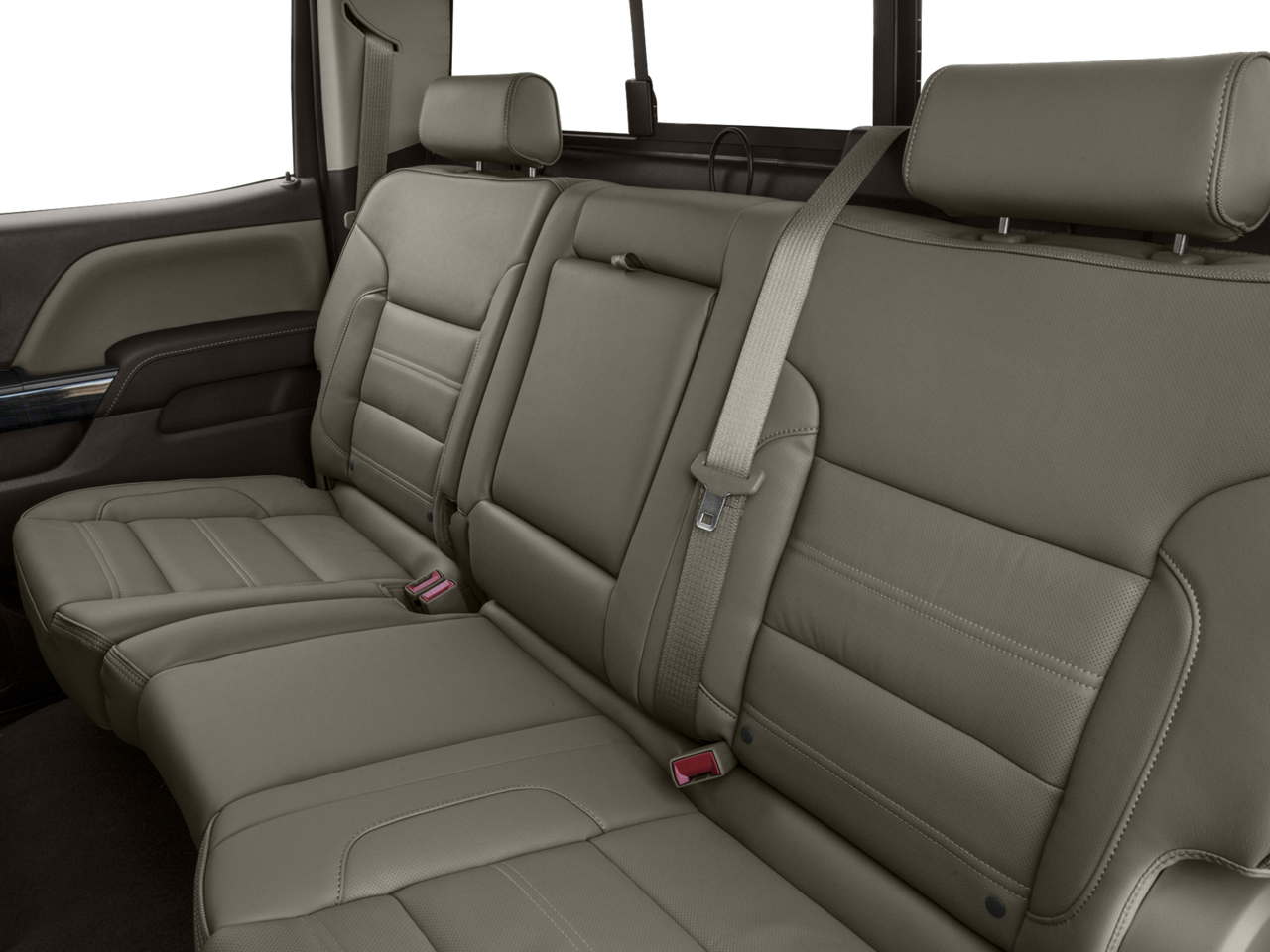

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

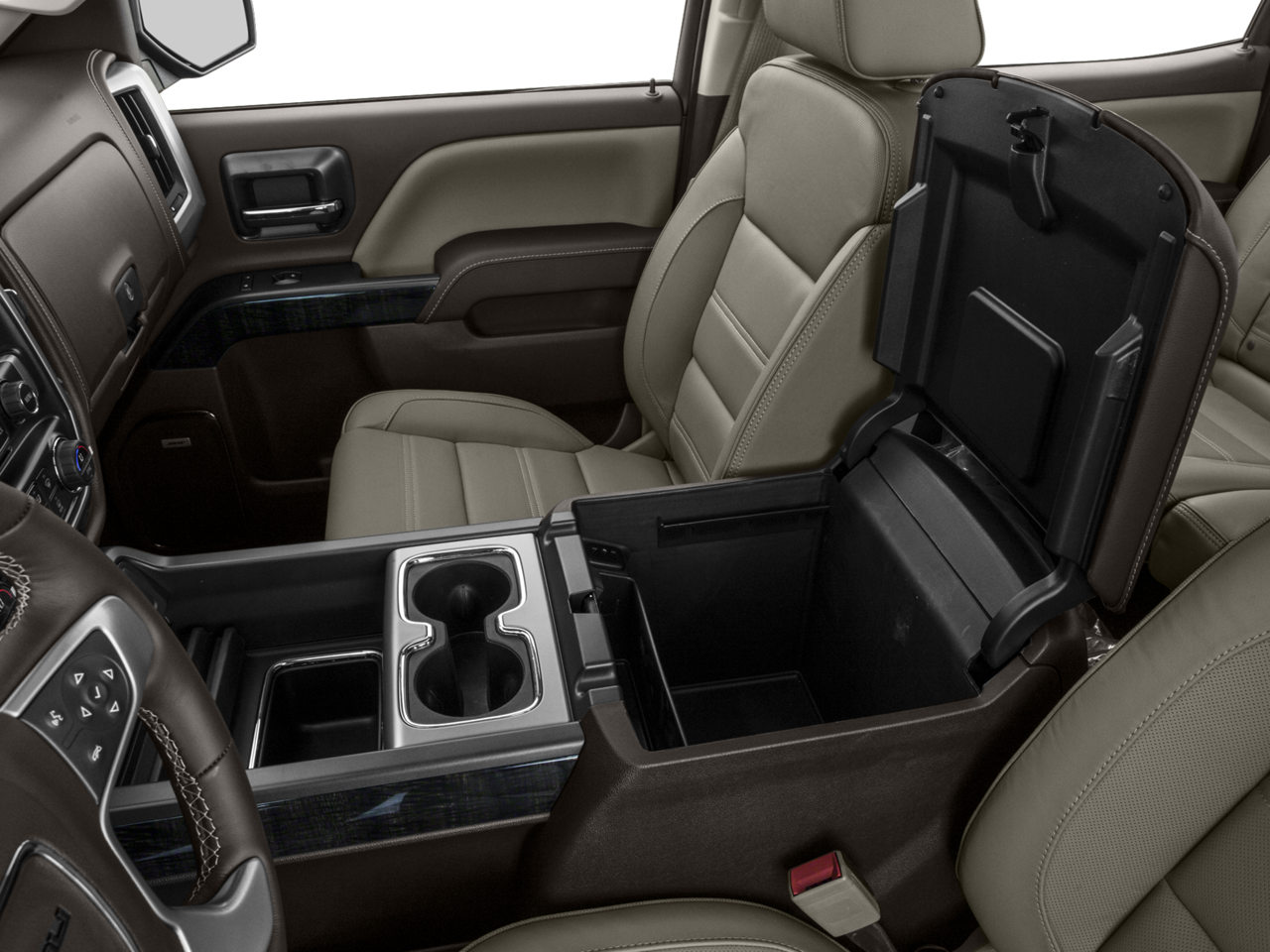

• Console, floor mounted with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row
• Steering column, manual Tilt-Wheel and telescoping

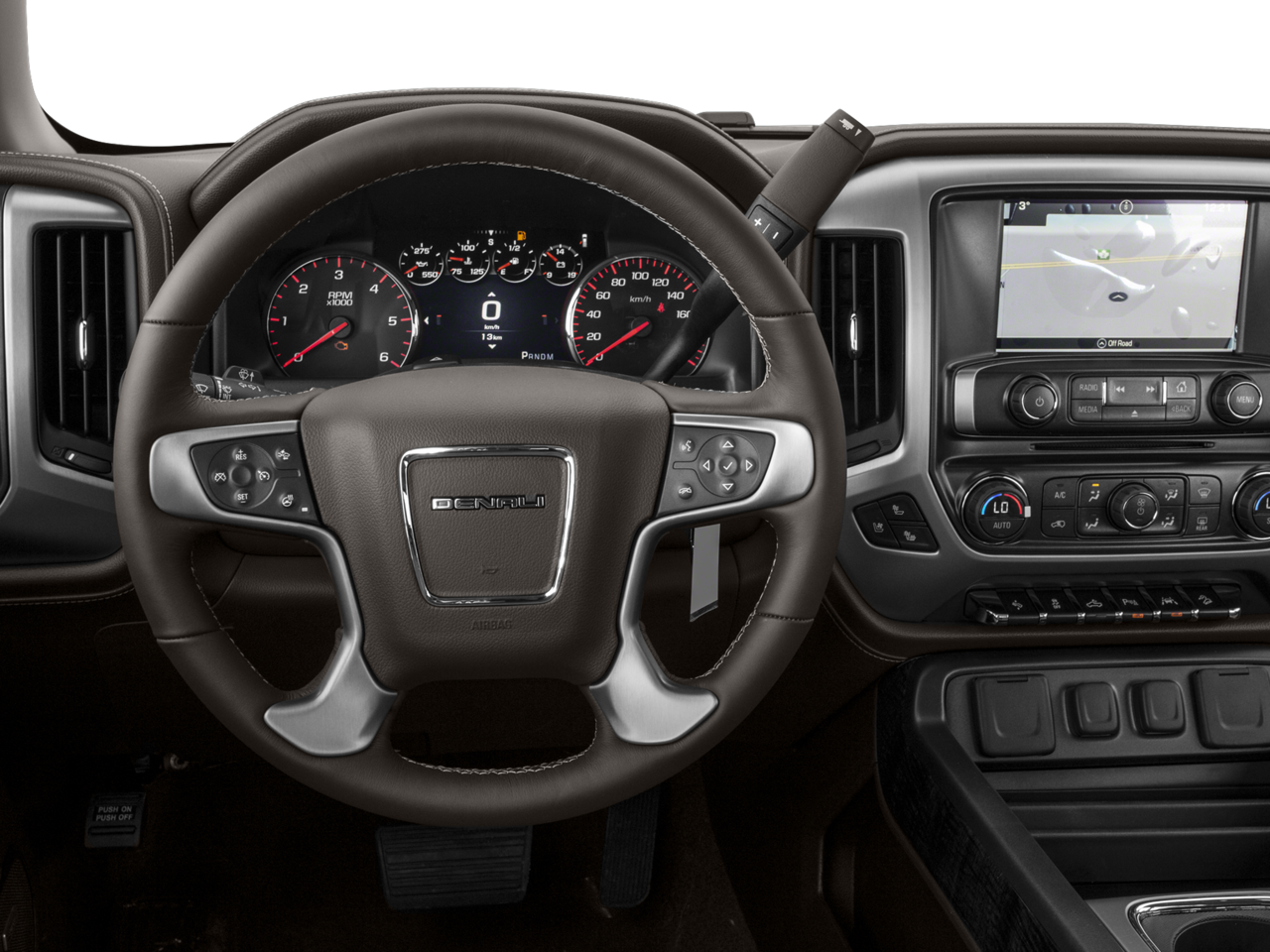

• Steering wheel, heated, leather wrapped with audio and cruise controls
• Display, customizable driver display, 8" multi-color configurable
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Pedals, power-adjustable
• Remote Keyless Entry
• Remote vehicle starter system
• Universal Home Remote
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars
• OnStar Guidance Plan for 3 months, including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Fleet orders receive a 6-month trial. Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data.)
• Front and Rear Park Assist, Ultrasonic

• Low Speed Forward Automatic Braking
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag, Passenger Sensing System
• Rear Vision Camera
• Forward Collision Alert
• Lane Keep Assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Safety Alert Seat
• Tire Pressure Monitoring System (does not apply to spare tire)

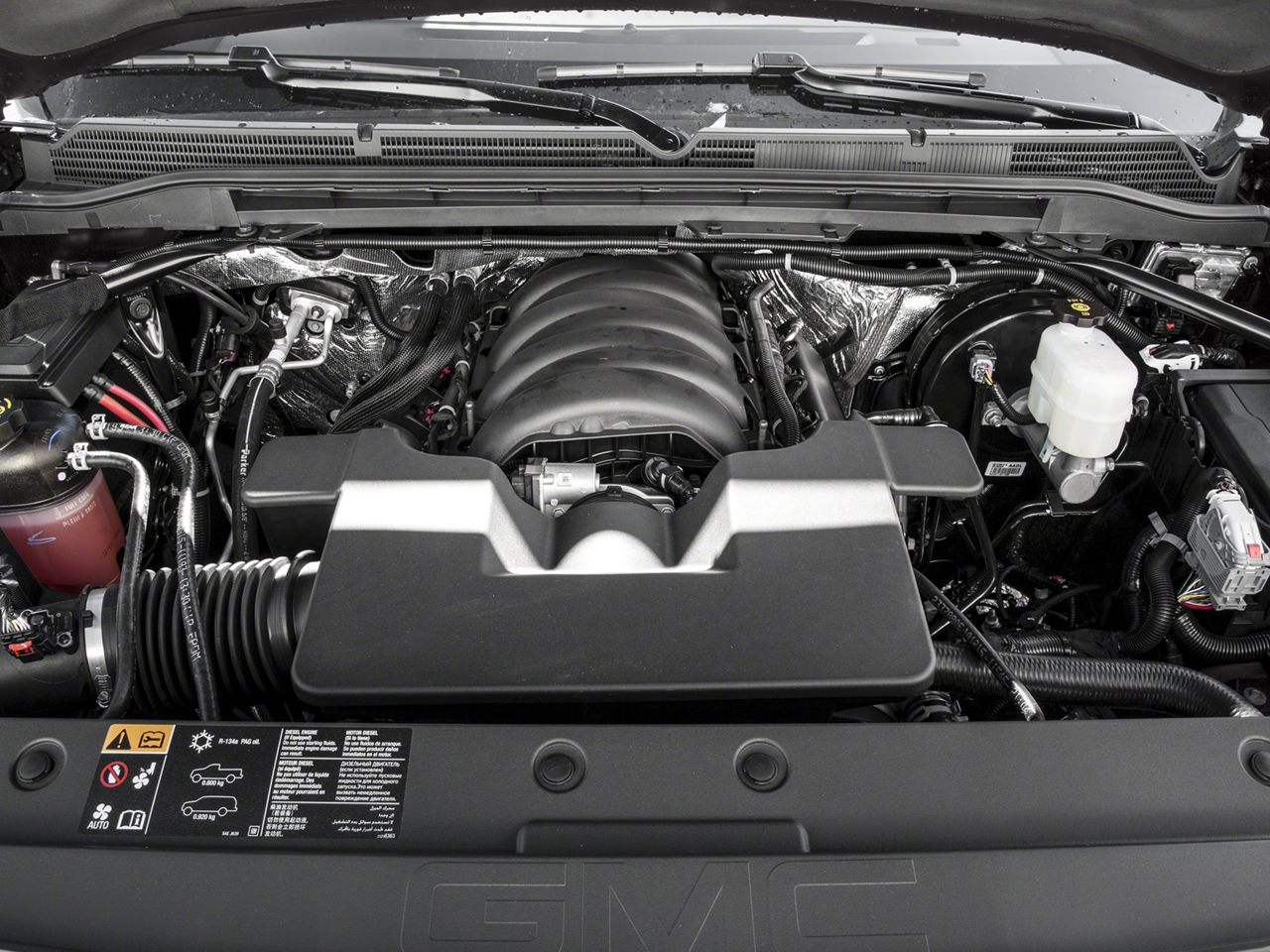

ENGINE, 6.2L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION

• and Variable Valve Timing
• includes aluminum block construction
• (420 hp [313 kW] @ 5600 rpm
• 460 lb-ft of torque [624 Nm] @ 4100 rpm)

• Navigation System
• Denali Ultimate Package
• Enhanced Driver Alert Package
• Preferred Equipment Group 5SA
• Trailering Equipment
• 7 Speakers
• Active Noise Cancellation
• AM/FM radio
• Bose Speaker System
• CD player
• HD Radio
• Radio data system
• Radio: AM/FM Stereo w/8" Diagonal Color Touch Nav.
• Single Slot CD/MP3 Player
• SiriusXM Satellite Radio
• Steering Wheel Audio Controls
• Air Conditioning
• Automatic temperature control
• Dual-Zone Automatic Climate Control
• Electric Rear-Window Defogger
• Front dual zone A/C
• Rear window defroster
• 110-Volt AC Power Outlet
• Memory seat
• Power driver seat
• Power steering
• Power windows
• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• Remote keyless entry
• Remote Vehicle Starter System
• Steering wheel mounted audio controls
• Universal Home Remote
• Adaptive suspension
• Leather Wrapped Heated Steering Wheel
• Manual Tilt/Telescoping Steering Column
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Emergency communication system: OnStar Guidance
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Remote Locking Tailgate
• Power Sunroof
• Body Color Lower Front Bumper
• Body Color Rear Bumper w/Cornersteps
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Rear Vision Camera
• Auto High-beam Headlights
• Delay-off headlights
• Front fog lights
• Fully automatic headlights
• Panic alarm
• Security system
• Speed control
• 2-Speed Active Electronic AutoTrac Transfer Case
• Auto-dimming door mirrors
• Bodyside moldings
• Bumpers: body-color
• EZ Lift & Lower Tailgate
• Front License Plate Kit
• Heated door mirrors
• IntelliBeam Automatic High Beam On/Off Headlight
• MagneRide Magnetic Ride Control Suspension
• Power door mirrors
• Rear step bumper
• Thin Profile LED Fog Lamps
• Tri-Mode Power Steps
• Turn signal indicator mirrors
• 8" Multi-Color Customizable Driver Display
• Adjustable pedals
• Auto-dimming Rear-View mirror
• Compass
• Driver door bin
• Driver vanity mirror
• Floor Mounted Console
• Forward Collision Alert
• Front Full Feature Power Reclining Bucket Seats
• Front reading lights
• Garage door transmitter: HomeLink
• Heated steering wheel
• Illuminated entry
• Lane Keep Assist
• Low Speed Forward Automatic Braking
• OnStar w/4G LTE
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Power Adjustable Pedals
• Rear reading lights
• Rear seat center armrest
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Ultrasonic Front & Rear Park Assist
• Voltmeter
• Wireless Charging
• Heated & Ventilated Front Bucket Seats
• Perforated Leather Appointed Seat Trim
• Power passenger seat
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• Alloy wheels
• Wheels: 20" x 9" Ultra Bright Machined Aluminum
• Deep-Tinted Glass
• Power Sliding Rear Window w/Defogger
• Variably intermittent wipers

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 910
• Maximum Trailering Capacity (lbs): 9100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.00 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.60 x 0.79
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall w/o rear bumper (in): 229.50
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.40
• Cab to Axle (in): 31.97
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.90
• Ground Clearance, Rear (in): 8.90
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.33
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 53.40
• Ext'd Cab Cargo Volume (ft³): - TBD -

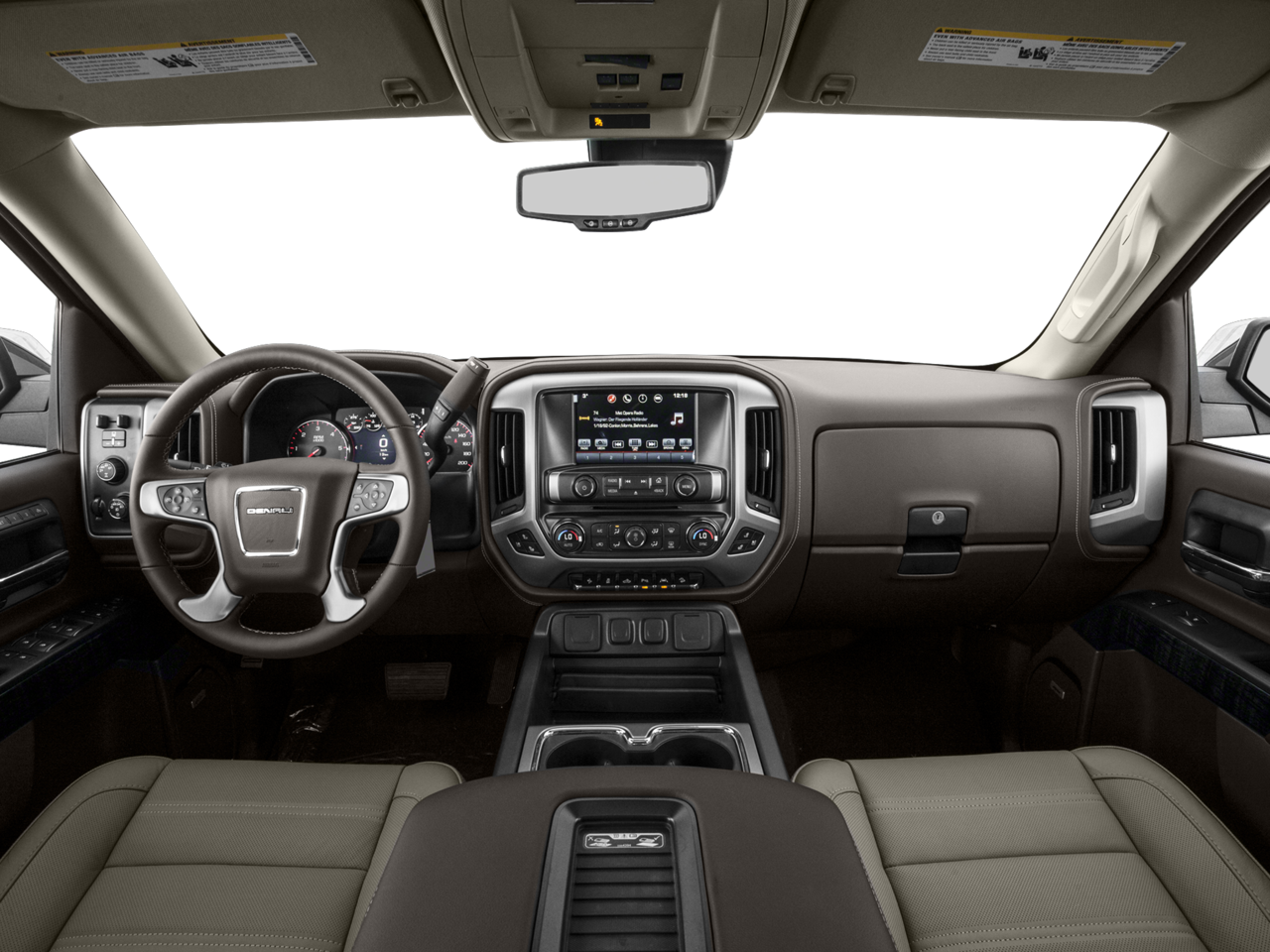

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary
• Vehicle Name: GMC Sierra 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
